2500mm high quality PET carpet making machine

Products feature: Three-dimensional high edge, waterproof material, the surface fiber is wear-resistant, durable, and non-slip.Variety and color have many kind of, suitable for all types of household carpet.

The high speed carpet making machine including:Plane carpet production line,Stripe carpet production line,Raising carpet production line,Raising carpet production line

Main Features

Production process: A percentage of polyester staple fiber ,polypropyline fiber, low melt point fiber and opened and blended by opener, then carded and lapped with required thickness, and set by needle and setting.

Name: Bale Opener

Width:1100mm 1200mm 1300mm 1400mm

Function: Open the fiber and weigh fiber electronically,it can be combined with sveral units together to mix different type of fibers.

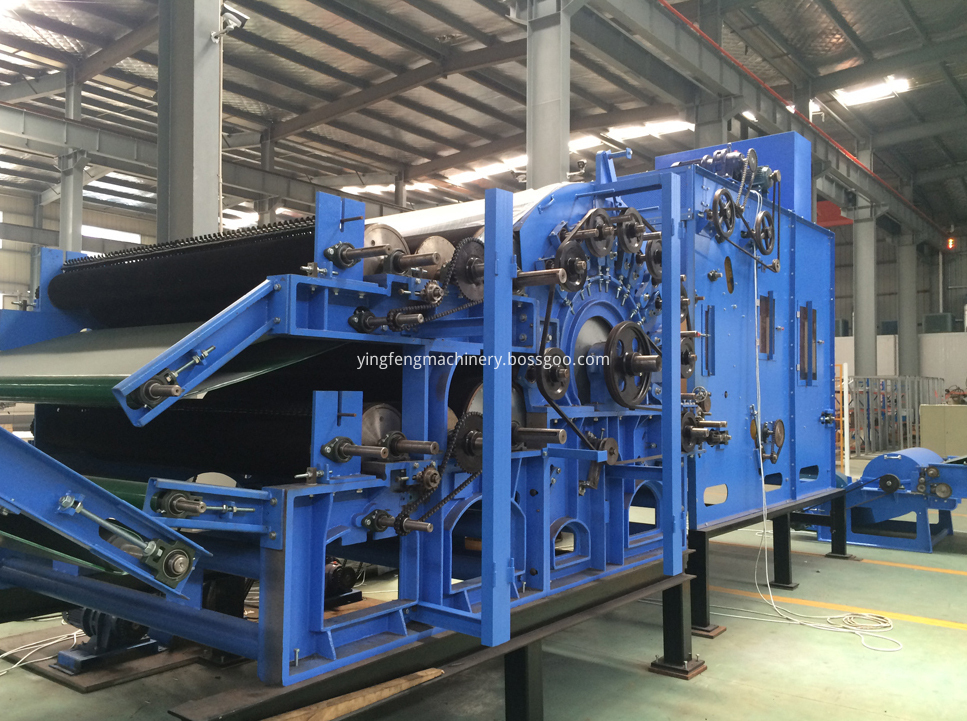

Name:single cylinder double doff carding machine.
double cylinder double doff carding machine.
Width:1850mm,2000mm,2200mm,2500mm
Capacity:200kg/h,250kg/h,300kg/h,350kg/h
Function:It is disigned with single cylinder or double cylinder and double doff,fiber is sent from front cylinder to middle doff and main cylinder through rollers,each cylinder have 4-5 sets of carding rollers,after many times of carding than feed to the curtain on the cross lapper.

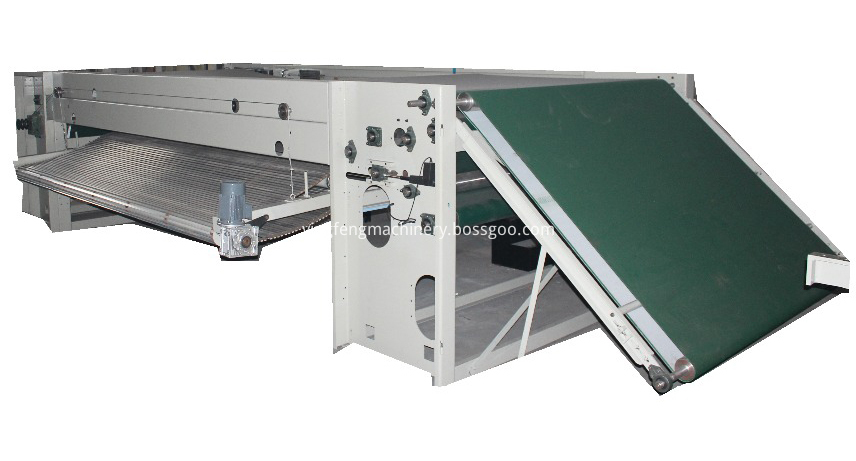

Name: Cross lapper machine
Feeding width: 1700mm-2700mm

Output width:1900mm-9000mm
Feeding speed:10m/min-50m/min

Output speed:1m/min-10m/min
Function:After carding,fiber net is sent to double-belts cross lapper through the non-skid curtain,it will be layered on the down-side curtain,than send to next equipment by adjustable moving curtain.

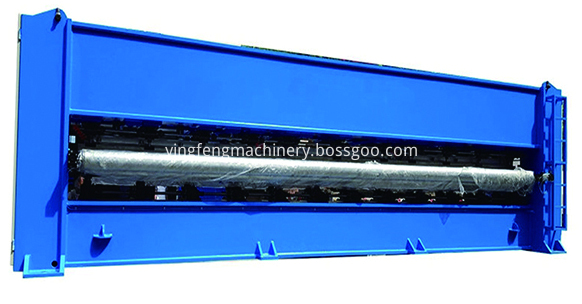

Name:Needle puching  machine
Working width:2200mm-8800mm

Punching frequency:100-720/min

Needle density:3500-4500n/m
Function:It is used production of needle punching nonwoven fabrics like garments interlining,felts,carpet,geotextile etc,there are pre-needle punching,up needle punching and down needle punching.
