Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 1 Set/Sets |
Delivery Time: | 120 Days |
Basic Info
Model No.: YF-3200SS
Product: SS Nonwoven Fabric Roll
Additional Info
Packaging: wooden box, carton
Brand: AL(Aolong)
Transportation: Ocean
Place of Origin: Zhejiang, China (Mainland)
Port: Ningbo,Shanghai
Product Description
This line is the professional manufacturing single layer non-woven fabric equipment. Our company conjugates overseas advanced technology and domestic producing situation, gives a sober assessment of the situation, developed autonomously into the professional equipment. It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labour and widely compatibility and so on.

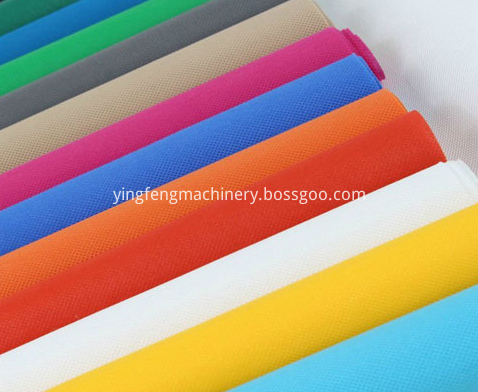

Final single layer non woven fabric is featured by uniform cover, great intensity, good breathable feature and good feeling.It is widely used for medical, protective products,household,hotel accessories,beauty care disposable product, Agricultural cover,clothes package and architecture.
1) The whole line is well-structured and easy operating.
2) Control elements are of well-know made,high performance and reliable technology.
3) The whole line are controlled by PLC and operated with touch-screen.
4) The allocation of te main frame and auxiliary equipment can be specially designed and adjusted according to customer's requirement.
5) No waste, No pollution.

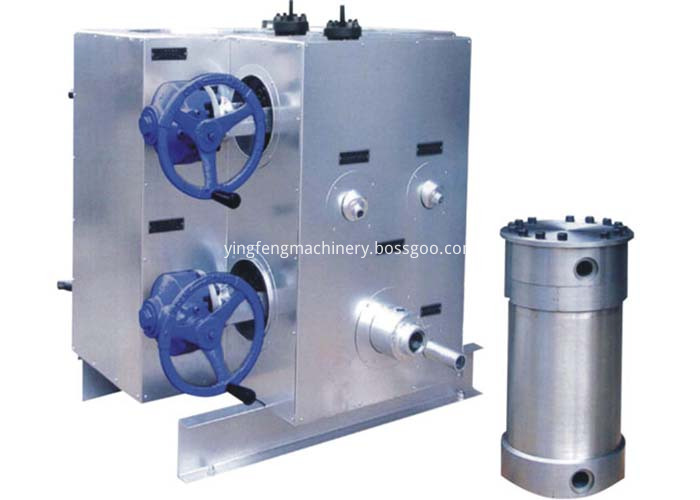

Name: Filter
Type: hydraulic or candle filter
Filtration precision: 45μm-60μm
Filtration area: 2.5㎡ for 1.6m
3.5㎡ for 3.2m
Max pressure: 12Mpa for 1.6m
16Mpa for 3.2m
Heat source: heat-transfer oil circular heating
Name: Metering pump
Supply volume: 200cc for 1.6m
200ccx2 for 3.2m
Rotate speed: 5~35r/min
Max pressure: 35MPa
Temperature: ≤300℃
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
